FLEX-Si
The lightweight and semi-flexible design of our Flex-Si product line makes them a perfect fit for installations where weight, flexibility and cost are essential considerations. In addition, these modules are made with A-grade silicon cells, ensuring high efficiency and clean energy production.
Rod Trevino @rodtrvn
FLEX Si
Flex-Si solar modules are cost-effective per watt while still being an exceptionally high-quality solar solution for typical camping and off-grid needs.
FLEX-Si 240 W
Retail: $434.99
FLEX-Si 125 W
Retail: $224.99
FLEX-Si 110 W
Retail: $199
FLEX SI features and benefits
FLEXIBLE
Made with A-grade silicon cells, the modules are strong yet flexible, allowing them to fit perfectly on almost any smooth, flat, or curved surface.
Easy Install
FLEX-Si solar panels come with adhesive on the back and are ready to be installed. It’s an easy peel-and-stick.
Withstands Elements
TThe ETFE protective layer ensures they can withstand the most extreme weather conditions, such as hail or falling debris.
CERTIFIED
While there aren’t any standards for off-grid solar panels, we follow the strict standards of on-grid solar panels for our manufacturing process.
Lightweight
At only 2.2mm thick, FLEX-Si solar modules are lightweight and can be mounted in spaces with weight constraints or when a lower profile
is desired.
5 YEAR WARRANTY
To give you peace of mind in the unlikely event that your solar panels fail, we offer a 5-year warranty on
solar output.
FLEX-Si Module Specs
FLEX-Si 110 W MODULE SPECS
Dimension: 32.6±0.1 in X 32.6±0.1 in
Weight: 3.0 kg (6.8 lbs)
Module Thickness: 1.7 mm
110 WATT ELECTRICAL
Peak Power (+5/-0%) : Pmax 110W
Avg. Cell Efficiency : >22%
Peak Power Voltage : Vmpp 18.25V
Peak Power Current : 6.03A
Open Circuit Voltage : Voc 21.9V
Short Circuit Current : Isc 6.34A
110 W MECHANICAL
Solar Cells : Si
Junction Box : IP-65, MC4 Compatible
Temperature F : -40° F to + 185° F
Max Load : Wind / 50 psf, 2400 Pa
Impact : 1 in Hail at 52 mph (23 m/s)
FLEX-Si 125 W MODULE SPECS
Dimension: 22.8 in” x 45.8” in
Weight: 3.2 kg (7 lbs)
Module Thickness: 1.7 mm
125 W ELECTRICAL
Peak Power (+5/-0%) : Pmax 125W
Avg. Cell Efficiency : >22%
Peak Power Voltage : Vmpp 20.52
Peak Power Current : 6.09A
Open Circuit Voltage : Voc 24.63V
Short Circuit Current : Isc 6.4A
125 W MECHANICAL
Solar Cells : Si
Junction Box : IP-65, MC4 Compatible
Temperature F ( C ) : -40° F to + 185° F
Max Load : Wind / 50 psf, 2400 Pa
Impact : 1 in Hail at 52 mph (23 m/s)

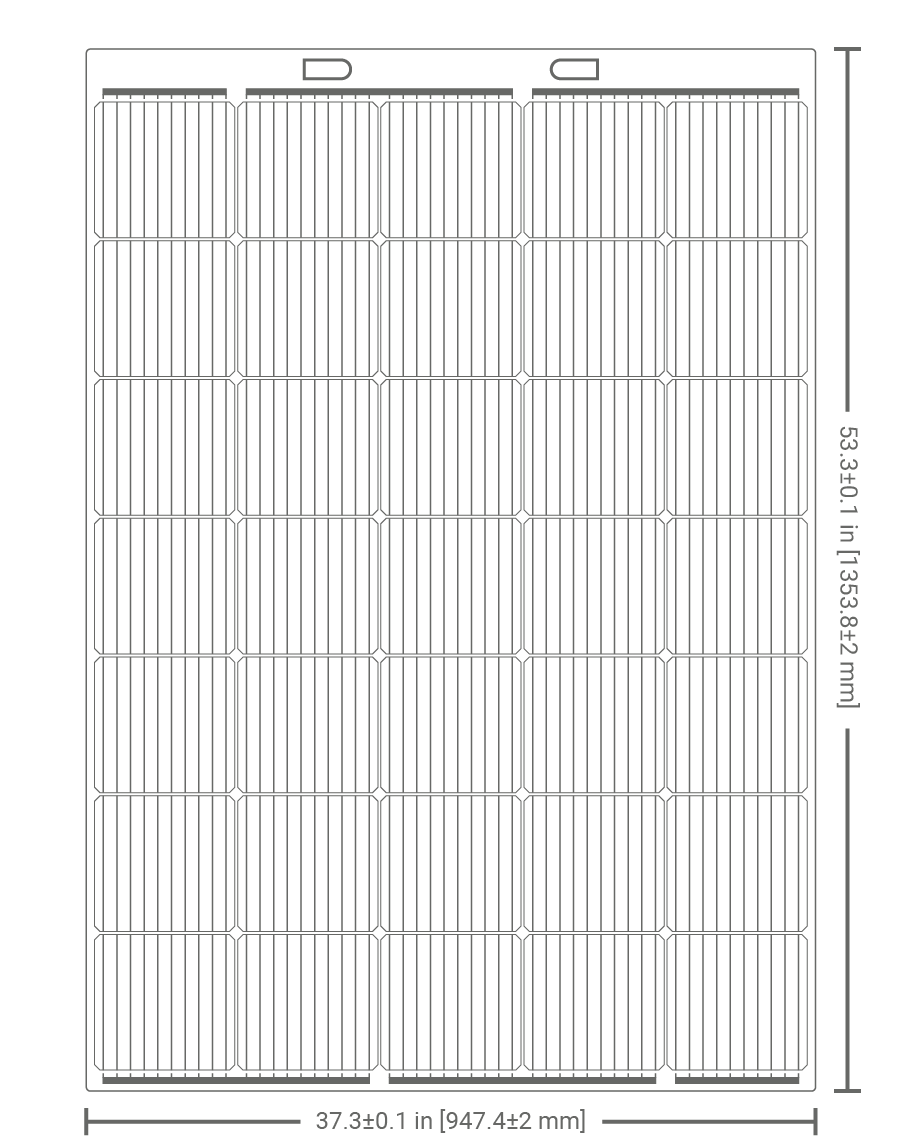

FLEX-Si 240 W MODULE SPECS
Dimension: 37.3 in” x 53.3 in”
Weight: 4.9kg (10.8 lbs)
Module Thickness: 1.7 mm
240 W ELECTRICAL
Peak Power (+5/-0%) : Pmax 240W
Avg. Cell Efficiency : >22%
Peak Power Voltage : Vmpp 20.V
Peak Power Current : 12A
Open Circuit Voltage : Voc 24.0V
Short Circuit Current : Isc 12.6A
240 W MECHANICAL
Solar Cells : Si
Junction Box : IP-65, MC4 Compatible
Temperature F ( C ) : -40° F to + 185° F
Max Load : Wind / 50 psf, 2400 Pa
Impact : 1 in Hail at 52 mph (23 m/s)
Who needs XPLOR’s FLEX-Si solar modules?
When you want the most bang for your buck, with strength and flexibility combined, FLEX-Si solar modules are the perfect solution.
With more power output per square inch under direct sunlight, FLEX Si solar modules are best suited for vehicles and vessels that:
Have limited space for mounting solar panels
Need a flexible panel to conform to a curved surface
Need lots of power fast
Have weight constraints and need a lighter option than rigid glass solar panels
